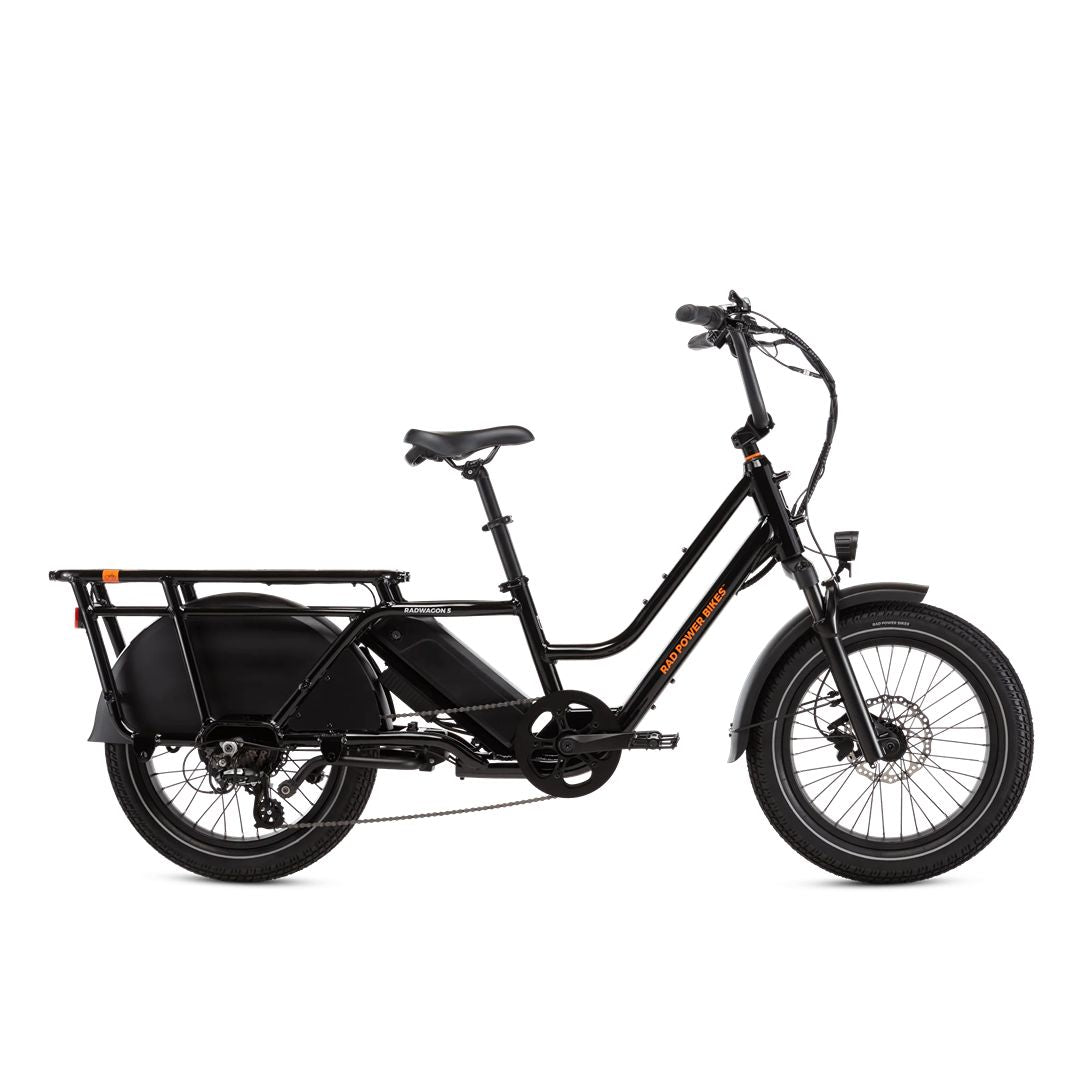

Rad Power Bikes RadWagon™ 5 Electric Cargo Bike

Rad Power Bikes RadWagon™ 5 Electric Cargo Bike

$2,199.00 USD
$0.00 USD $2,199.00 USD
Sale Sold out
Color: Black
For local pick up only
If you’d like to take a test ride, click here to sign the waiver and make an appointment. Or just stop in. Call ahead to make sure we have this model on the floor.

The Rad Power Bikes RadWagon™ 5 Electric Cargo Bike brings a bold new era of comfort, safety, and utility to family riding. With its 750 W rear hub motor (90 Nm torque), top speed of 28 MPH, and range up to 60+ miles, this longtail cargo e-bike transforms school runs, grocery trips, and weekend adventures into pure fun.

Built on a lower, more compact frame for improved handling, the RadWagon 5 accommodates riders from 4'11″ to 6'3″ while supporting a total payload of 375 lbs. The Safe Shield 15 Ah (720 Wh) battery with UL 2271 certification and thermal-resistant design delivers best-in-class reliability—paired with hydraulic disc brakes, integrated turn signals, and a 450 lumen headlight for all-weather safety.

Whether hauling kids or cargo, the RadWagon 5 keeps things easy with torque-sensor pedal assist, front suspension for comfort, and a dual-leg center kickstand for stable loading. It’s everything you love about a cargo bike—now smarter, safer, and smoother than ever.

Key Features

  • Powerful 750 W rear hub motor with 90 Nm torque
  • 15 Ah 720 Wh Safe Shield battery (UL 2271 certified)
  • Up to 60+ miles of range per charge
  • Class 1–3 switchable, 28 MPH top speed
  • Hydraulic disc brakes (Tektro HD-E395, 180 mm rotors)
  • Torque-sensor pedal assist with 5 PAS levels + throttle
  • Front suspension fork (RST Guide, 45 mm travel)
  • Integrated LED lighting with turn signals and brake light
  • Rear rack rated for 120 lb cargo capacity
  • Rider fit: 4′11″–6′3″ (150–190 cm)

Technical Specifications

Feature Detail
Motor 750 W rear hub motor, 90 Nm torque
Battery 48 V 15 Ah (720 Wh) Safe Shield external lithium-ion, UL 2271 certified
Controller 48 V system, torque sensor integration
Top Speed Up to 28 MPH (Class 3)
Range 20–60 miles per charge (terrain-dependent)
Charging Time ≈ 6–7 hours with 48 V 2 A smart charger
Brakes Tektro HD-E395 hydraulic disc, 180 mm rotors
Pedal Assist Torque sensor, 5 PAS levels + zero assist option
Throttle Half-twist throttle
Display Rad custom color display with USB-C charging port
Lighting Front 450 lumen LED + integrated brake & turn signals
Frame 6061 aluminum alloy cargo frame
Fork RST Guide suspension fork, 45 mm travel
Drivetrain Shimano 7-speed with 50T chainring
Tires Kenda 20″ × 3.3″ puncture-resistant
Payload Capacity 375 lbs (rider + cargo)
Rear Rack Capacity 120 lbs (54.4 kg)
Rider Fit 4′11″–6′3″ (150–190 cm)
Bike Weight 86 lbs (39 kg) / 75.6 lbs without battery
UL Certification UL 2849 system + UL 2271 battery
Water Resistance Weather-resistant design, IP-rated components

Included

  • RadWagon™ 5 e-cargo bike
  • 48 V 2 A charger
  • Integrated front & rear fenders
  • Dual-leg kickstand
  • Tool kit & assembly guide
