WHAT'S ON THE FLOOR:
Metallic Blue
1 5

KEY SPECIFICATIONS

MOTOR 750W rear hub · 90 Nm
TOP SPEED Up to 28 mph
RANGE Up to 60 miles
BATTERY 48V 15Ah · 720Wh
WEIGHT CAPACITY 375 lb total payload
BRAKES Hydraulic disc

Manufacturer specifications; actual performance varies with rider, terrain, and conditions.

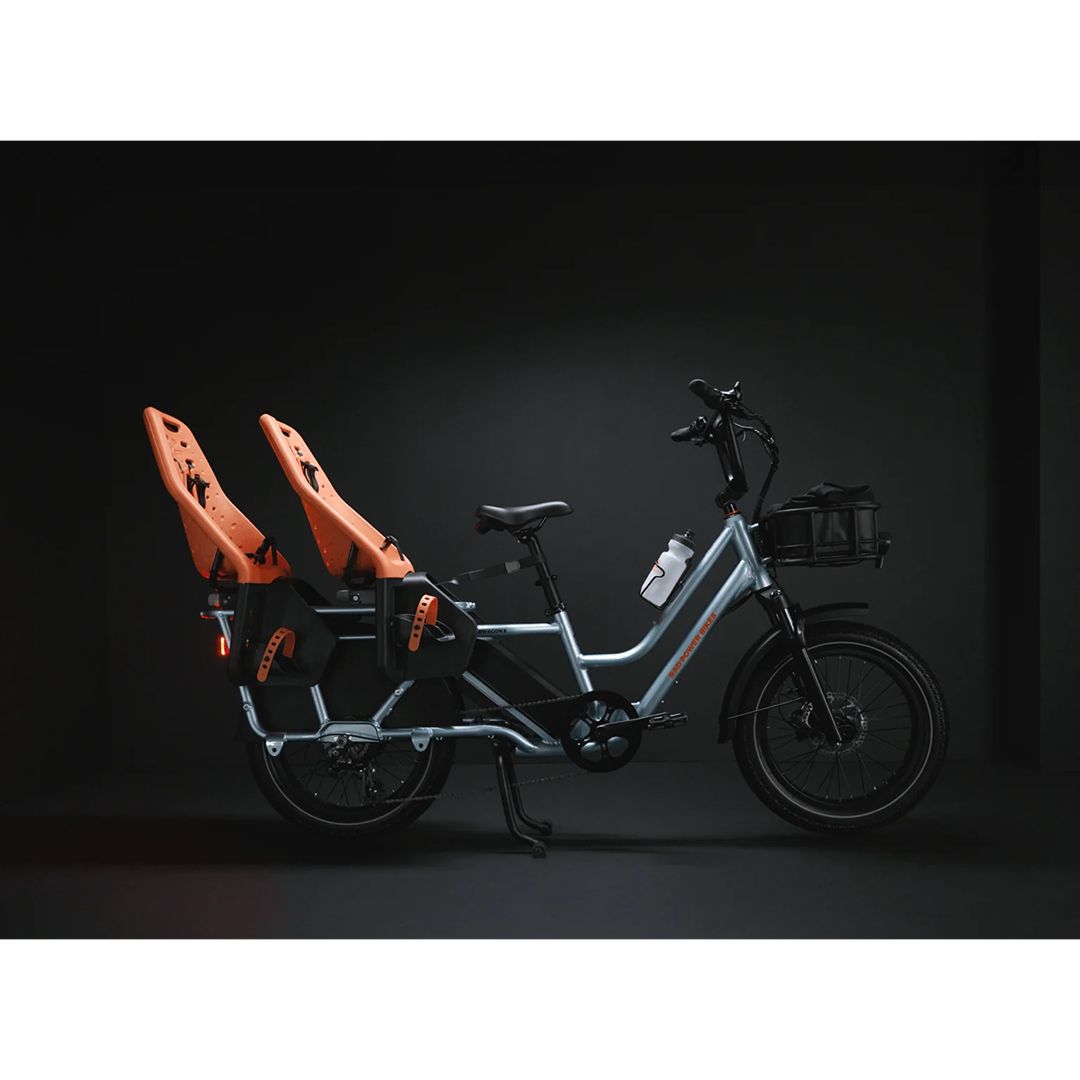

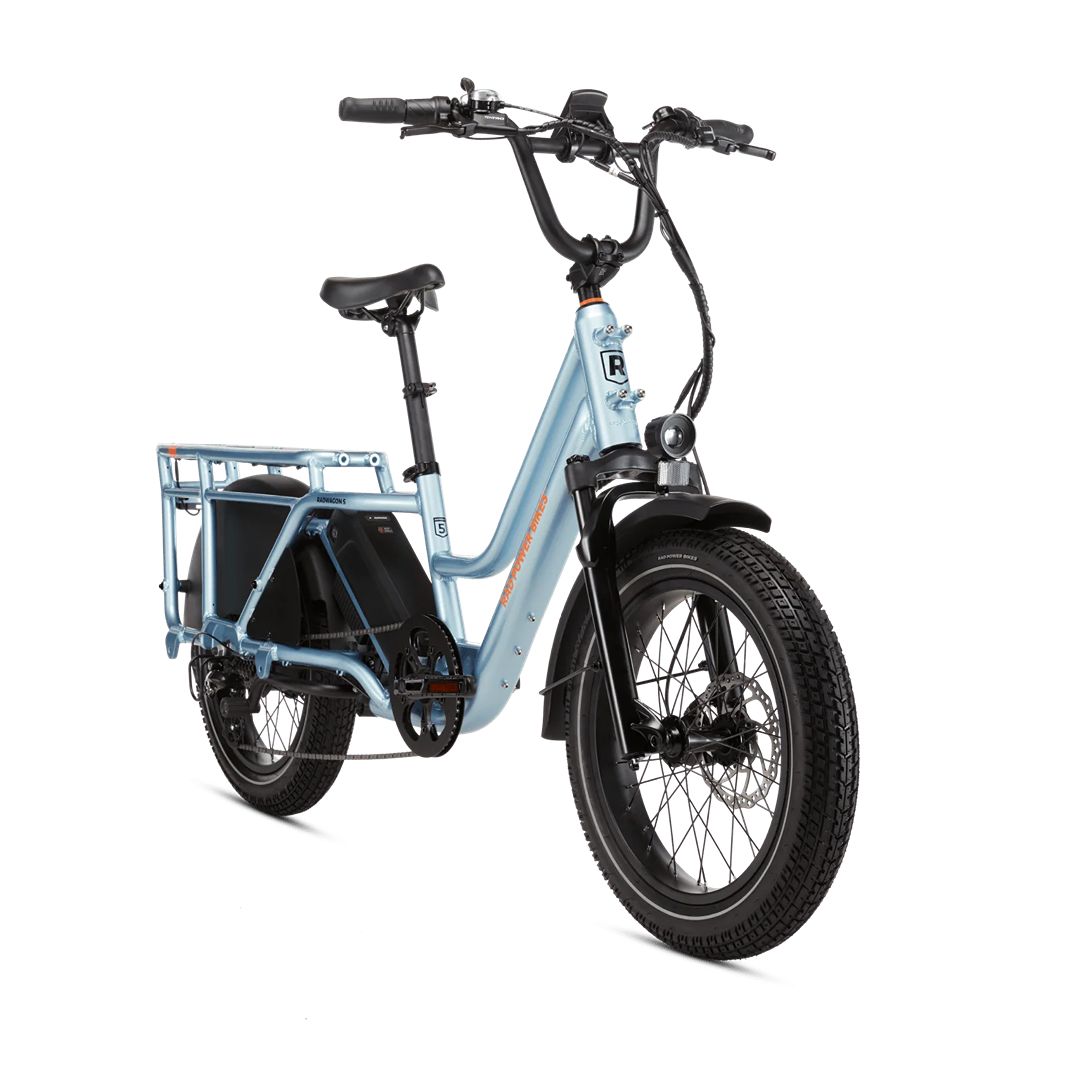

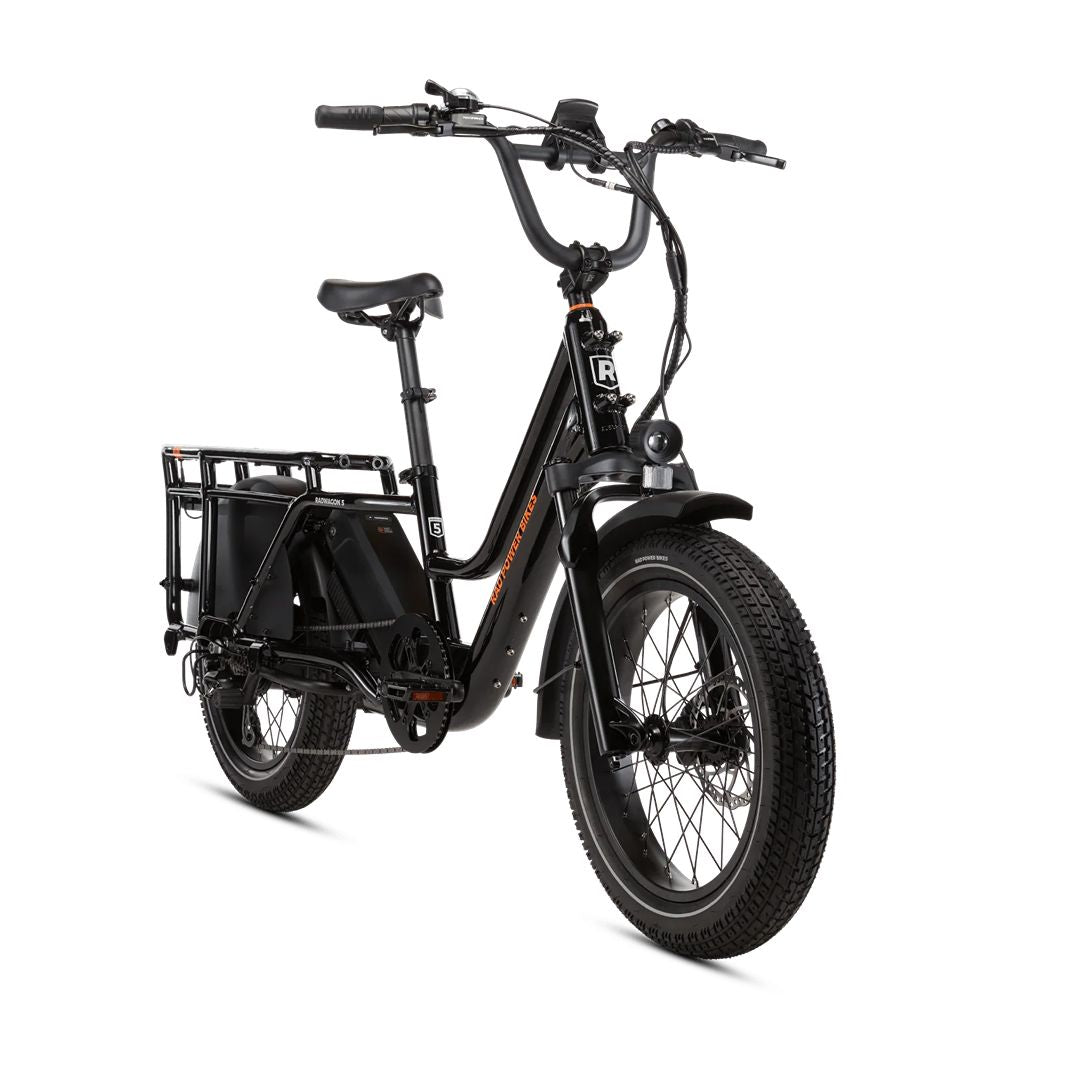

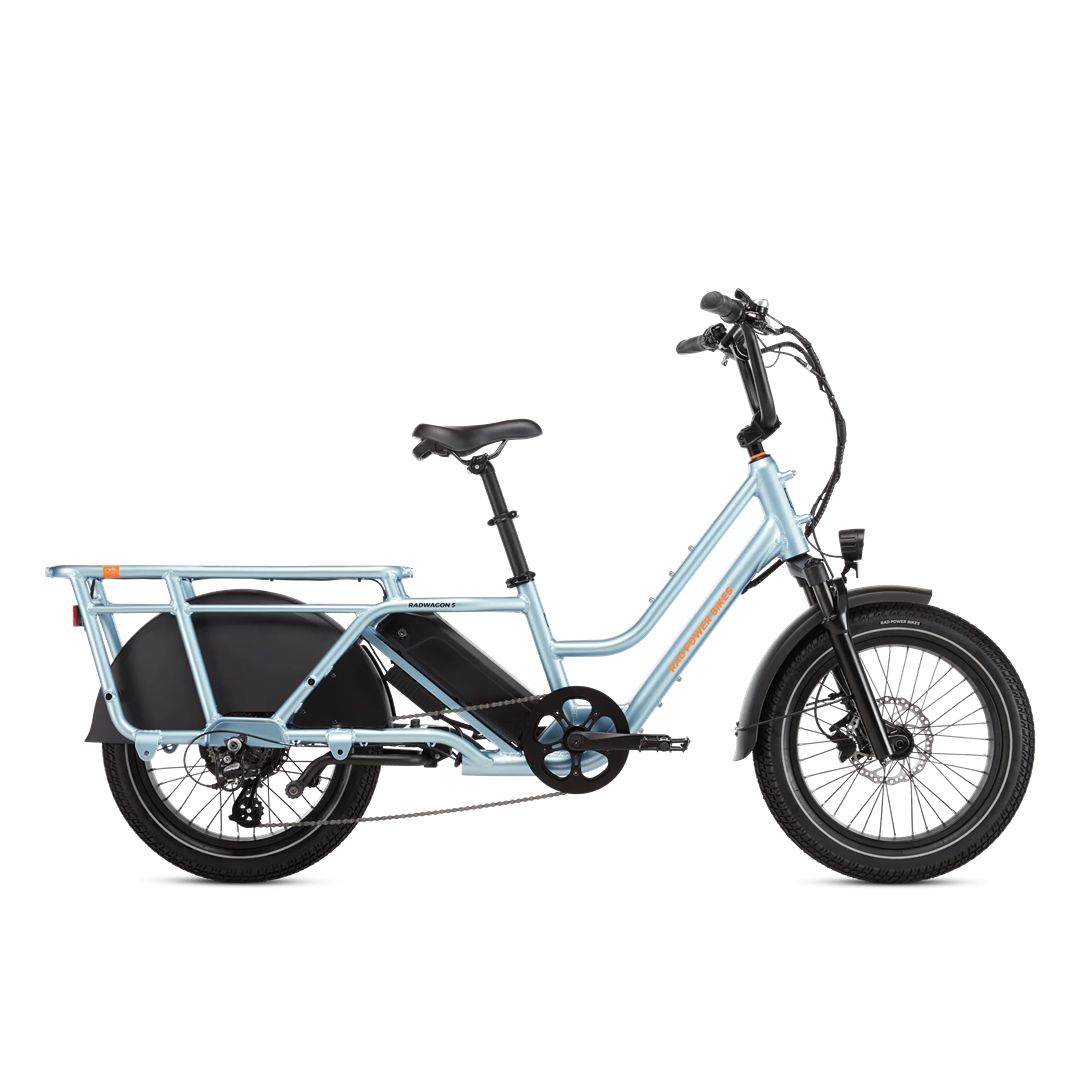

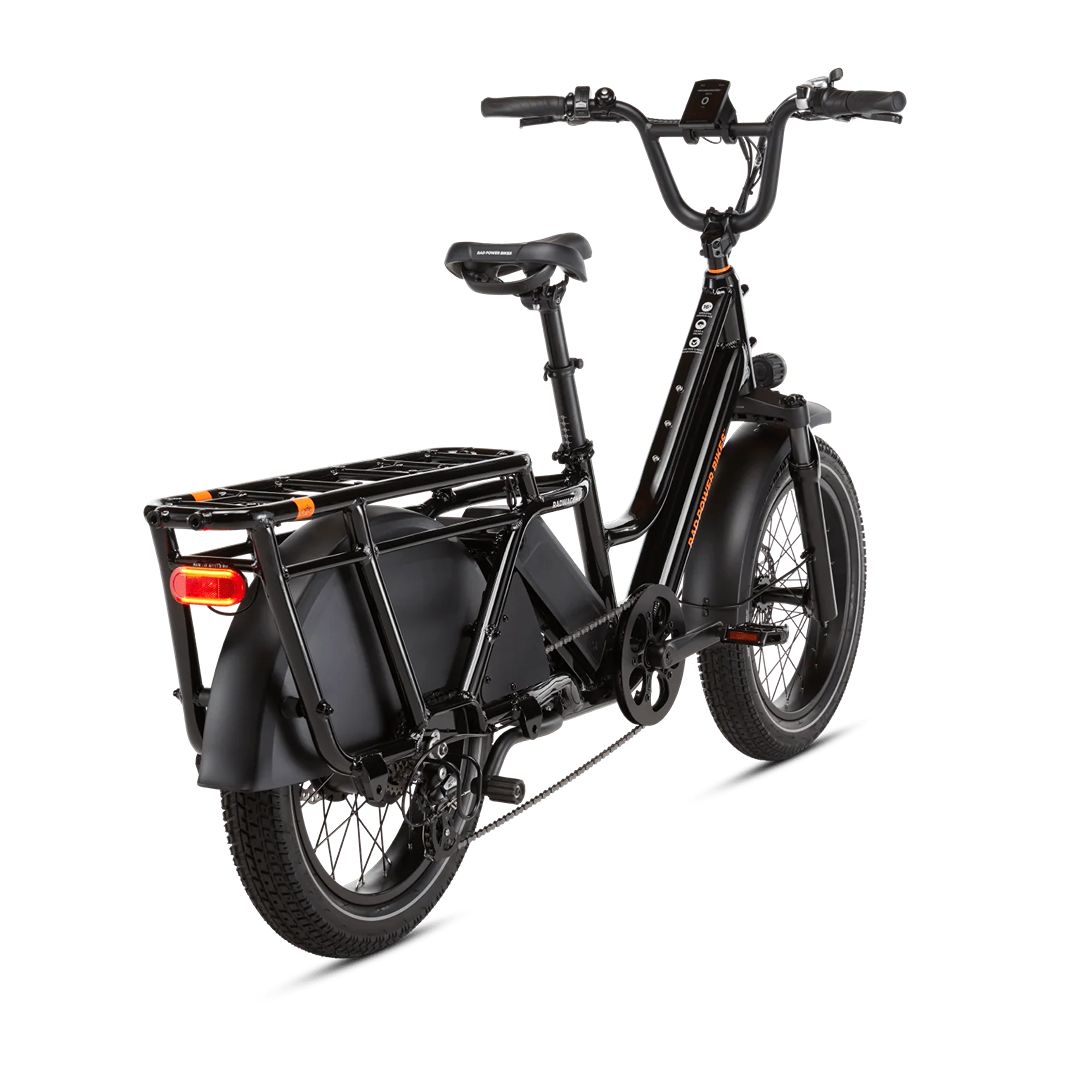

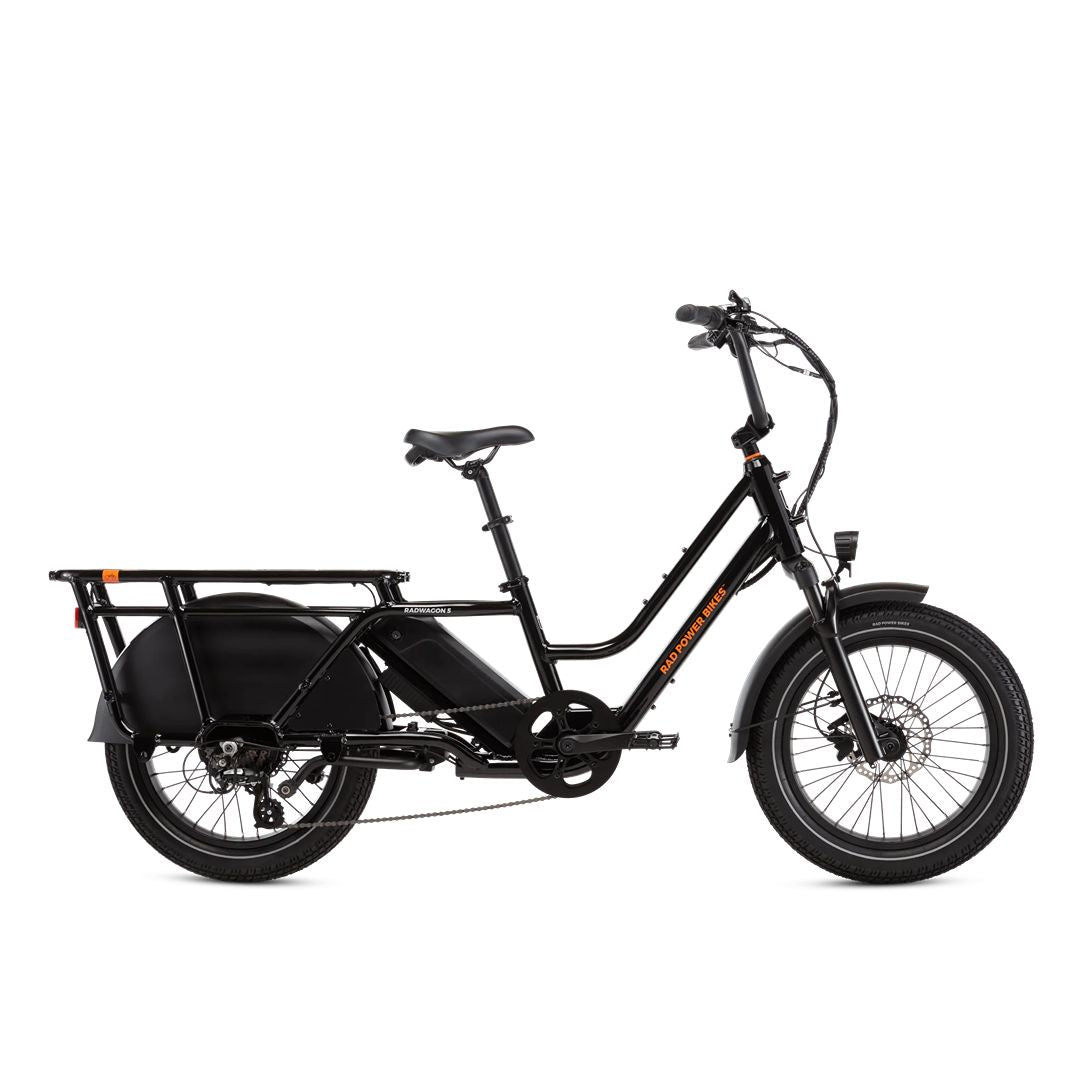

Rad Power Bikes RadWagon™ 5 Electric Cargo Bike

Rad Power Bikes RadWagon™ 5 Electric Cargo Bike

$2,399.00 USD
$2,399.00 USD
Jesse's e-Rides delivery vanLocal delivery is available for an additional fee.
Color: Metallic Blue
This configuration is in stock at Jesse's e-Rides: 1
Available for in-store purchase only.
View full details

For store pickup only, the Rad Power Bikes RadWagon™ 5 Electric Cargo Bike brings a bold new era of comfort, safety, and utility to family riding. With its 750 W rear hub motor (90 Nm torque), top speed of 28 MPH, and range up to 60+ miles, this longtail cargo e-bike transforms school runs, grocery trips, and weekend adventures into pure fun.

Built on a lower, more compact frame for improved handling, the RadWagon 5 accommodates riders from 4'11″ to 6'3″ while supporting a total payload of 375 lbs. The Safe Shield 15 Ah (720 Wh) battery with UL 2271 certification and thermal-resistant design delivers best-in-class reliability—paired with hydraulic disc brakes, integrated turn signals, and a 450 lumen headlight for all-weather safety.

Whether hauling kids or cargo, the RadWagon 5 keeps things easy with torque-sensor pedal assist, front suspension for comfort, and a dual-leg center kickstand for stable loading. It’s everything you love about a cargo bike—now smarter, safer, and smoother than ever.

Key Features

  • Powerful 750 W rear hub motor with 90 Nm torque
  • 15 Ah 720 Wh Safe Shield battery (UL 2271 certified)
  • Up to 60+ miles of range per charge
  • Class 1–3 switchable, 28 MPH top speed
  • Hydraulic disc brakes (Tektro HD-E395, 180 mm rotors)
  • Torque-sensor pedal assist with 5 PAS levels + throttle
  • Front suspension fork (RST Guide, 45 mm travel)
  • Integrated LED lighting with turn signals and brake light
  • Rear rack rated for 120 lb cargo capacity
  • Rider fit: 4′11″–6′3″ (150–190 cm)

Technical Specifications

Feature Detail
Motor 750 W rear hub motor, 90 Nm torque
Battery 48 V 15 Ah (720 Wh) Safe Shield external lithium-ion, UL 2271 certified
Controller 48 V system, torque sensor integration
Top Speed Up to 28 MPH (Class 3)
Range 20–60 miles per charge (terrain-dependent)
Charging Time ≈ 6–7 hours with 48 V 2 A smart charger
Brakes Tektro HD-E395 hydraulic disc, 180 mm rotors
Pedal Assist Torque sensor, 5 PAS levels + zero assist option
Throttle Half-twist throttle
Display Rad custom color display with USB-C charging port

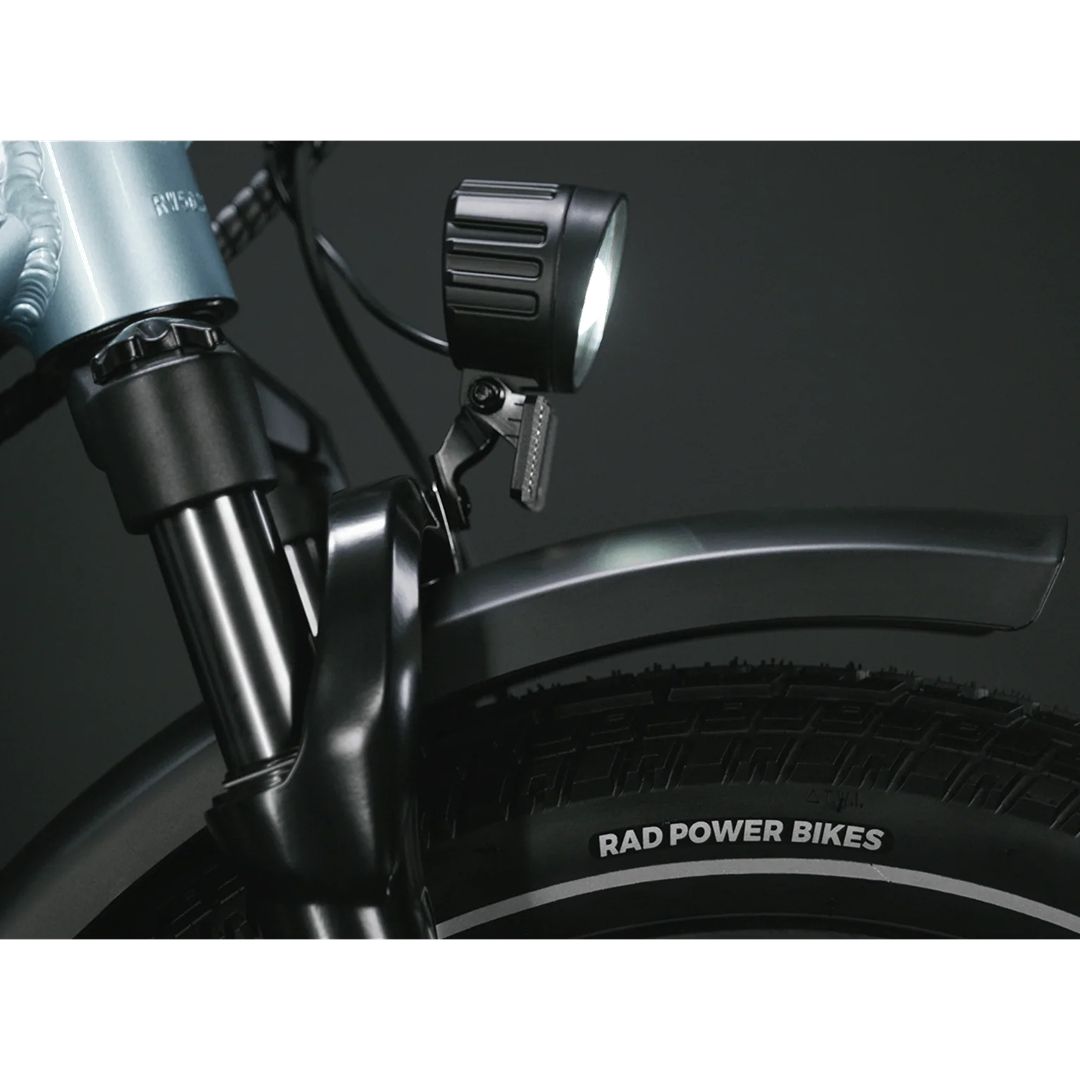

Lighting Front 450 lumen LED + integrated brake & turn signals
Frame 6061 aluminum alloy cargo frame
Fork RST Guide suspension fork, 45 mm travel
Drivetrain Shimano 7-speed with 50T chainring
Tires Kenda 20″ × 3.3″ puncture-resistant
Payload Capacity 375 lbs (rider + cargo)
Rear Rack Capacity 120 lbs (54.4 kg)
Rider Fit 4′11″–6′3″ (150–190 cm)
Bike Weight 86 lbs (39 kg) / 75.6 lbs without battery
UL Certification UL 2849 system + UL 2271 battery
Water Resistance Weather-resistant design, IP-rated components

Included

  • RadWagon™ 5 e-cargo bike
  • 48 V 2 A charger
  • Integrated front & rear fenders
  • Dual-leg kickstand
  • Tool kit & assembly guide

New Jersey e-bike classification
Traditional class: Class 1 / 2 / 3 configurable
NJ legal category: Motorized Bicycle (Moped) — ships Class 2
NJ: Rider must be at least 15 and hold a valid driver license or NJ e-bike license/permit. MVC registration, helmet, and insurance required.

Read more about New Jersey’s e-bike law · Insurance options: Get a Velosurance quote

General information only. Laws, regulations, and local riding rules can change.
