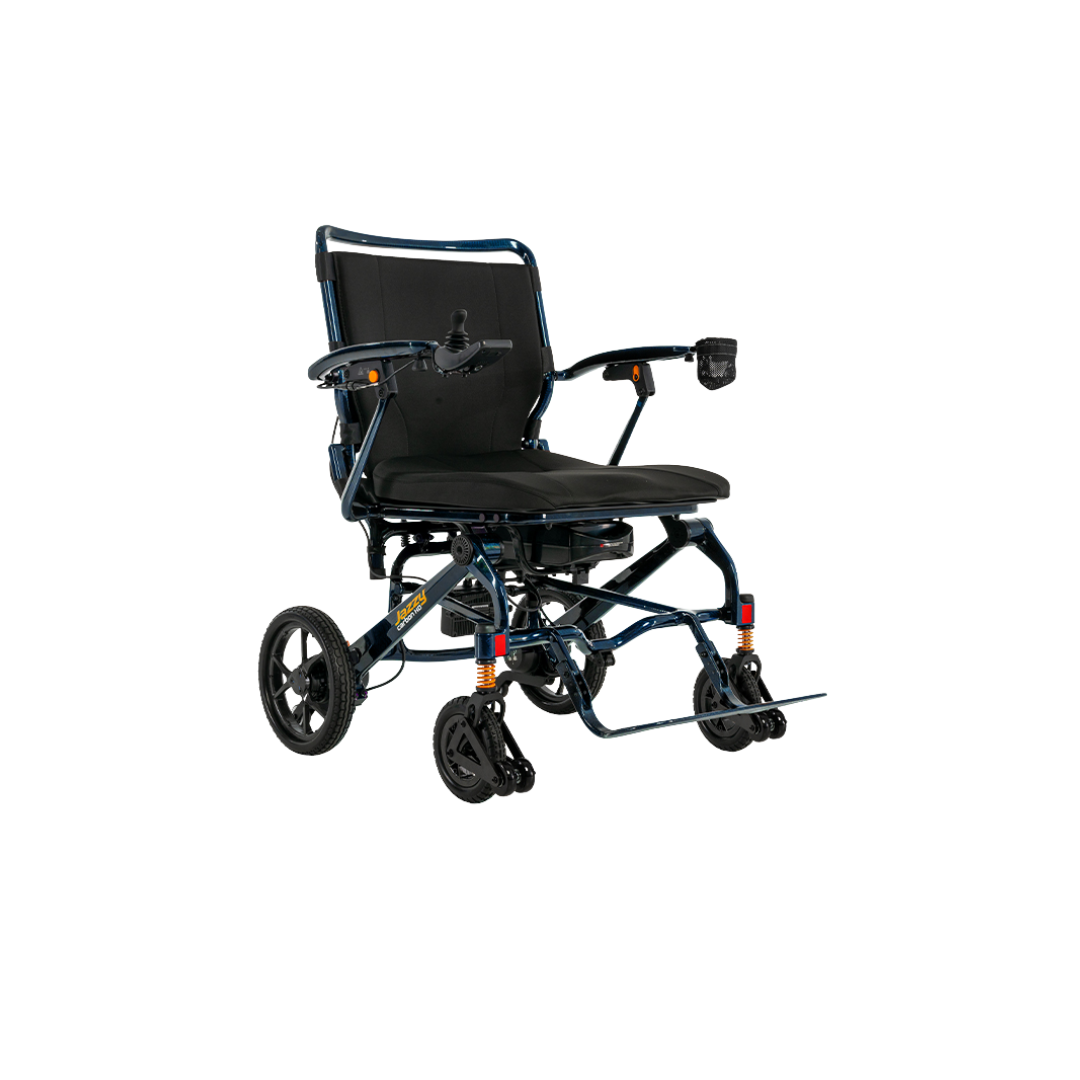

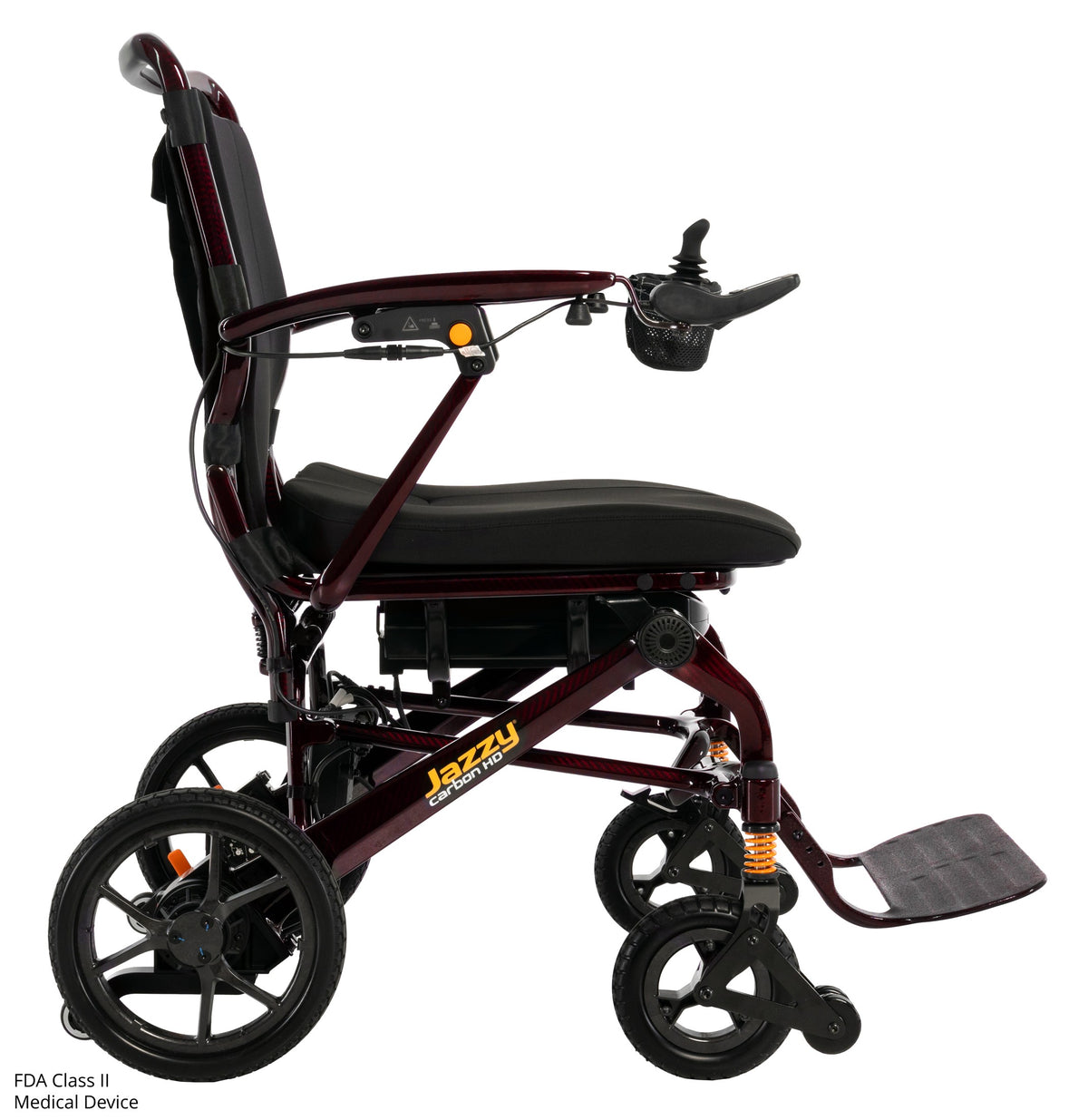

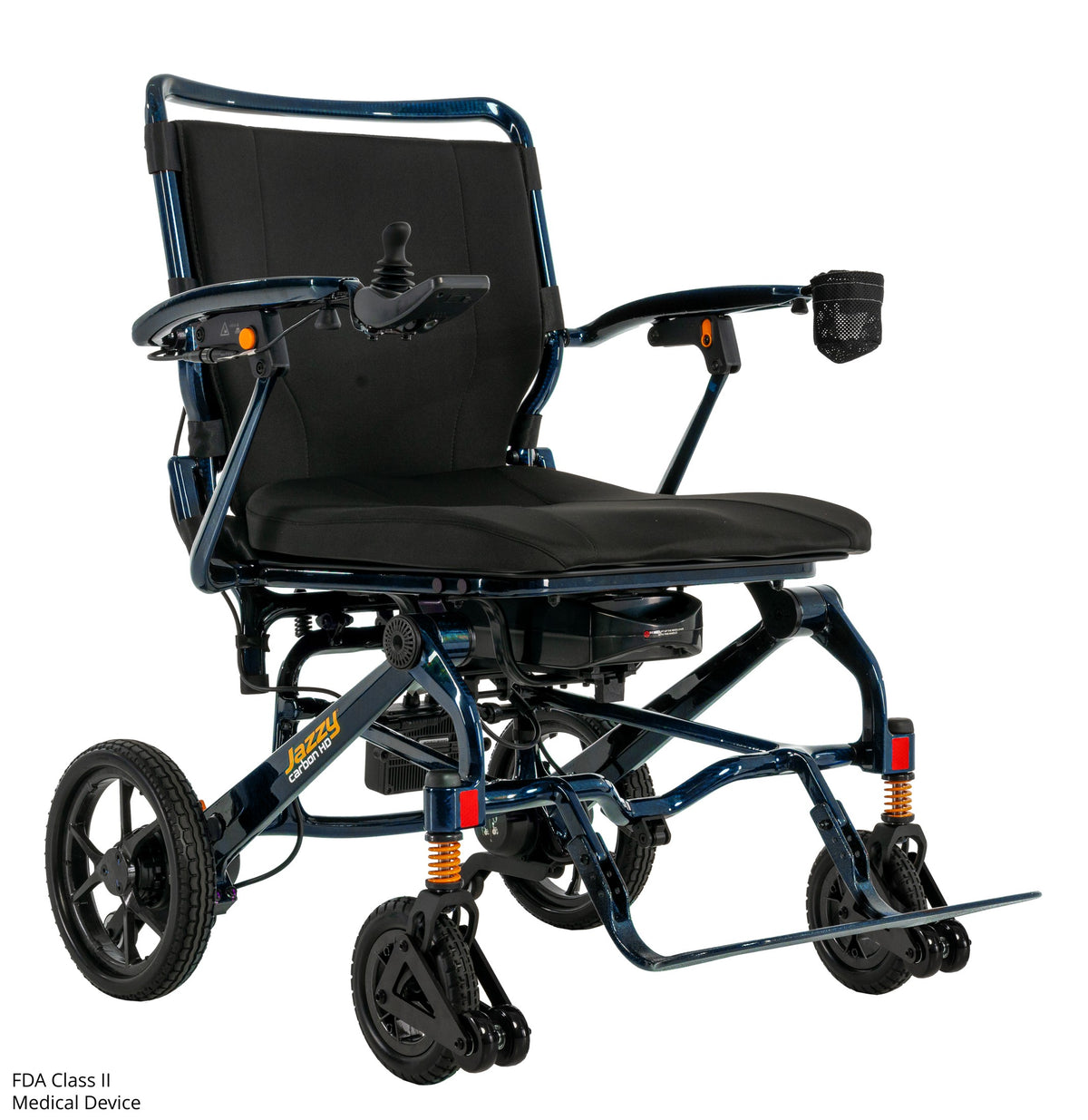

Pride Jazzy Carbon HD Heavy-Duty Folding Power Chair combines a lightweight folding design with a higher weight capacity, full front and rear suspension, and powerful brushless motors. With a 400 lb. weight capacity, up to 3.7 MPH top speed, and up to 12.4 miles of range per charge, the Jazzy Carbon HD is designed to provide comfortable and dependable mobility while remaining easy to transport and store.

Built for riders who need additional support, the Jazzy Carbon HD features a 400 lb. weight capacity and a spacious 20" × 20" standard seat with a padded seat back, solid seat pan, and removable cushion. Full front and rear suspension helps provide a smoother ride across everyday surfaces.

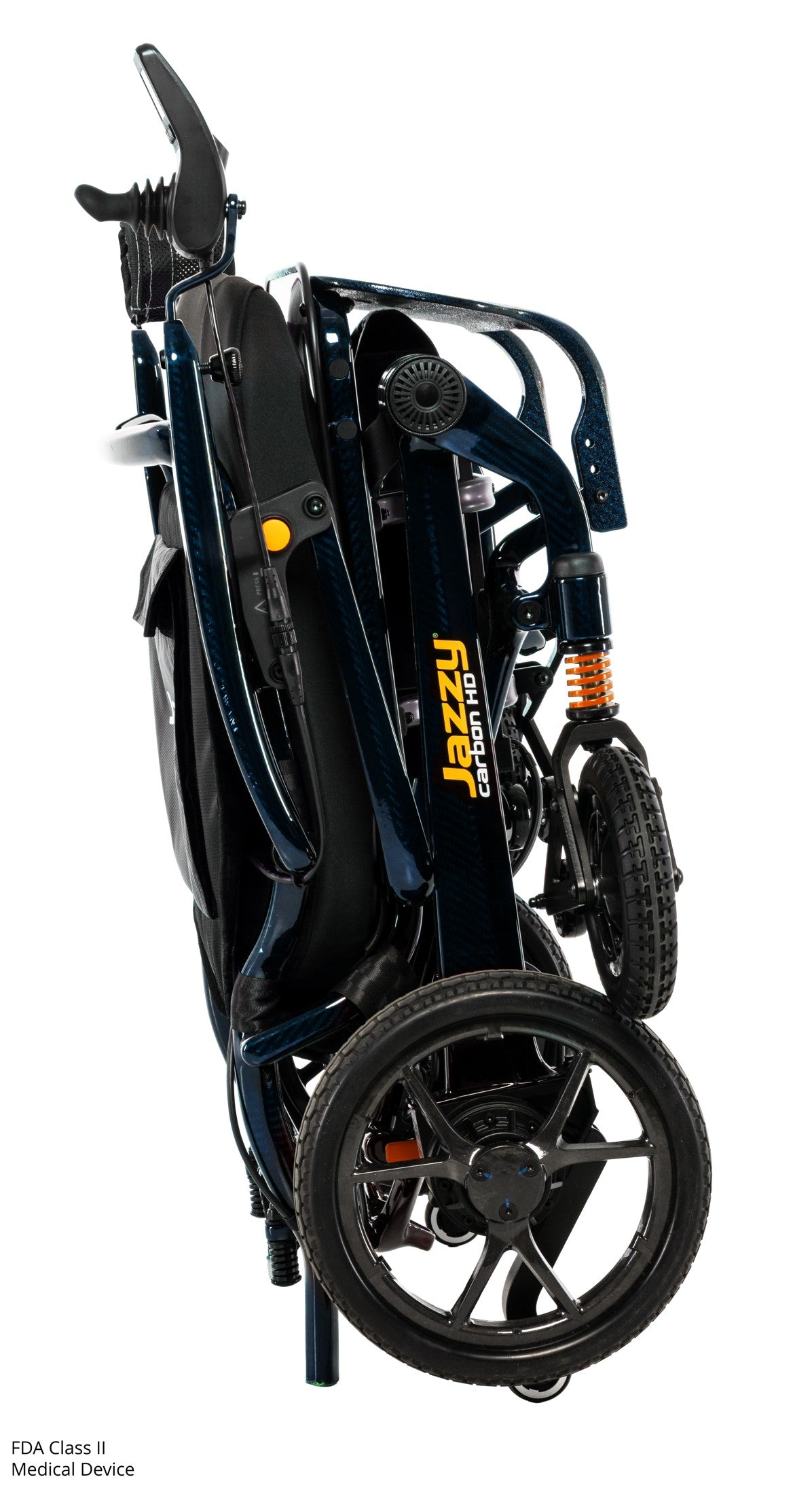

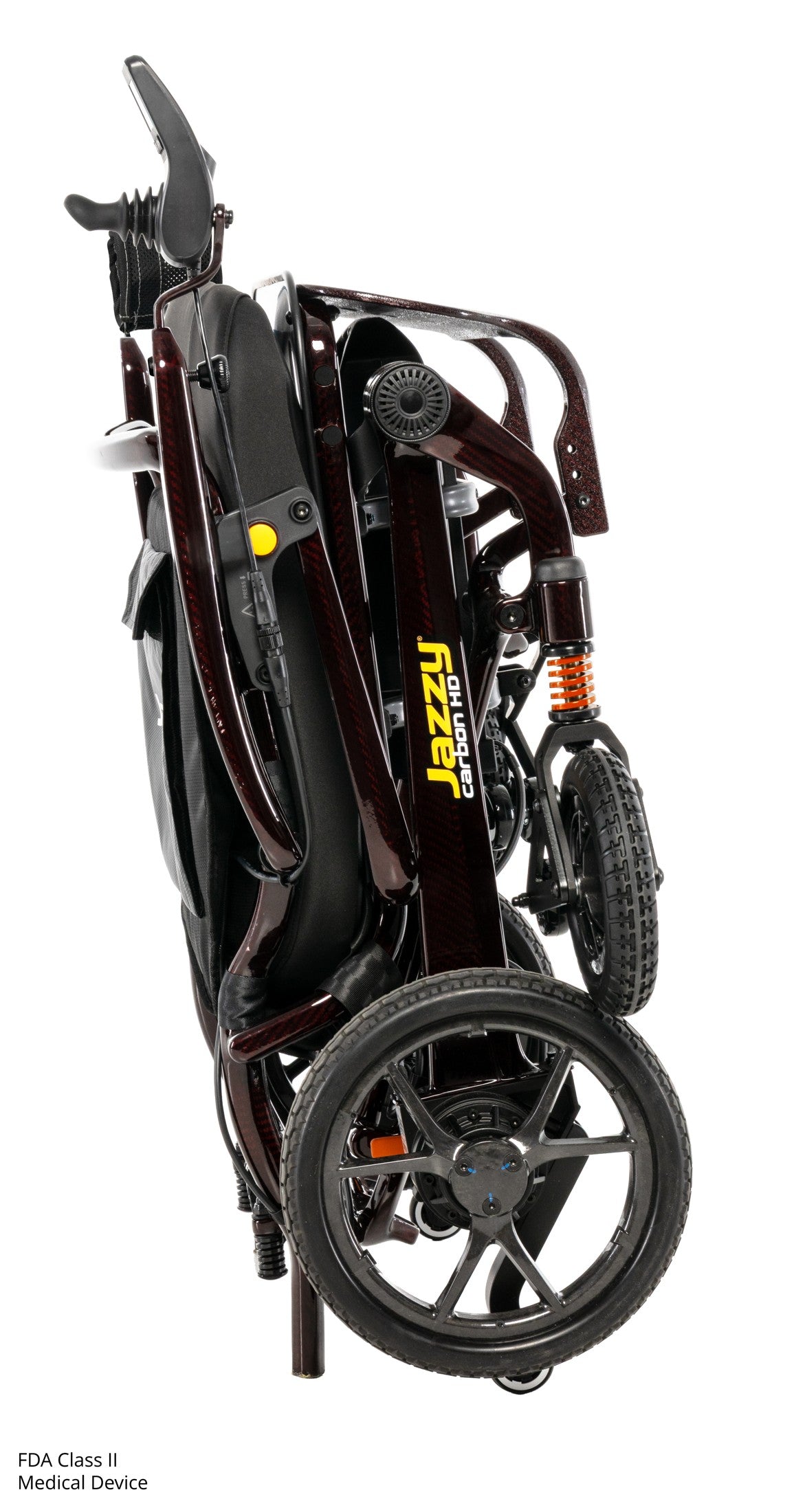

Despite its heavy-duty capability, the Jazzy Carbon HD weighs only 32.2 lbs. without batteries. Its folding design reduces the chair to approximately 31.3" L × 26.4" W × 13" H, making it easier to store and transport.

Key Features

• Heavy-duty portable folding power chair
• 400 lbs. weight capacity
• Up to 3.7 MPH maximum speed
• Up to 12.4 miles per charge
• Full front and rear suspension
• 32.2 lbs. product weight without batteries
• Compact folding design
• 20" × 20" standard seating
• Padded seat back with solid seat pan and removable cushion
• 24V 250W brushless motors
• Regenerative and electromechanical braking system
• 20Ah lithium battery
• 2 Amp battery charger
• 36.4-inch turning radius
• 10.6-inch rear wheels
• 6.5-inch front wheels

Heavy-Duty & Portable Design

The Jazzy Carbon HD is designed for riders who need a higher weight capacity without giving up portability. With a 400 lb. weight capacity and a product weight of just 32.2 lbs. without batteries, it provides a balance of support and transportability.

Weight Capacity: 400 lbs.
Product Weight Without Batteries: 32.2 lbs.
Folded Dimensions: 31.3" L × 26.4" W × 13" H
Overall Length: 36.81"
Overall Width: 26.4"

Performance & Range

The Jazzy Carbon HD uses 24V 250W brushless motors and can reach speeds of up to 3.7 MPH. Its 20Ah lithium battery provides up to 12.4 miles per charge, with actual range varying based on rider weight, terrain, battery condition, tire condition, and other operating conditions.

Motor: 24V 250W Brushless Motors
Maximum Speed: Up to 3.7 MPH
Range: Up to 12.4 miles per charge
Battery: 20Ah Lithium Battery

Full Suspension Comfort

The Jazzy Carbon HD features full front and rear suspension to help absorb bumps and vibrations during everyday riding. The suspension system works with the larger rear wheels to provide a more comfortable ride across a variety of surfaces.

• Full front suspension
• Full rear suspension
• 6.5-inch front wheels
• 10.6-inch rear wheels

Comfortable Seating

The standard seating provides a spacious 20" × 20" seating area. The padded seat back and removable cushion are designed to provide additional comfort during everyday use.

• Seat Dimensions: 20" × 20"
• Padded seat back
• Solid seat pan
• Removable cushion

Maneuverability

The Jazzy Carbon HD features a 36.4-inch turning radius and a compact overall footprint. With 1 inch of ground clearance at the motor, the power chair is designed for everyday mobility while maintaining its portable folding form.

Turning Radius: 36.4"
Ground Clearance: 1" at motor
Front Wheels: 6.5"
Rear Wheels: 10.6"

Battery & Charging

The Jazzy Carbon HD uses a 20Ah lithium battery box and includes a 2 Amp charger. The battery weighs approximately 7.5 lbs.

• Battery Type: Lithium battery box
• Battery Capacity: 20Ah
• Battery Weight: 7.5 lbs.
• Charger: 2 Amp

Travel Note: Transport of the Jazzy Carbon HD and its lithium-ion battery on commercial aircraft is subject to federal regulations and airline policies. Check with your airline before traveling.

Braking System

The Jazzy Carbon HD uses a regenerative and electromechanical braking system designed to provide controlled braking during operation.

Specifications

• Model: Jazzy Carbon HD
• Weight Capacity: 400 lbs.
• Maximum Speed: Up to 3.7 MPH
• Range: Up to 12.4 miles per charge
• Product Weight Without Batteries: 32.2 lbs.
• Overall Length: 36.81"
• Overall Width: 26.4"
• Ground Clearance: 1" at motor
• Turning Radius: 36.4"
• Suspension: Full Front and Rear Suspension
• Front Wheels: 6.5"
• Rear Wheels: 10.6"
• Folded Dimensions: 31.3" L × 26.4" W × 13" H
• Motor: 24V 250W Brushless Motors
• Braking: Regenerative and Electromechanical
• Battery: 20Ah Lithium Battery
• Battery Weight: 7.5 lbs.
• Charger: 2 Amp
• Standard Seat: 20" × 20" with padded seat back, solid seat pan, and removable cushion

Warranty

• Frame: 5-year warranty
• Electronics: 1-year limited warranty
• Drivetrain: 1-year limited warranty
• Battery: 1-year limited warranty

Medical Device Information

Pride® FDA Class II Medical Devices are designed to aid individuals with mobility impairments.

HCPCS Code: K0899 Power Mobility Device, not coded by DME PDAC. DME providers are responsible for determining appropriate billing codes when submitting for insurance reimbursement. HCPCS codes provided should not be considered legal advice and do not guarantee reimbursement. Payer coding, coverage, and bundling guidelines may apply.

Note: Specifications may vary due to manufacturing tolerances, continual product improvement, user weight, terrain, battery condition, tire pressure, and other operating conditions. Speed and range may vary by individual use. Overall measurements may also vary based on seating and accessory selections.
