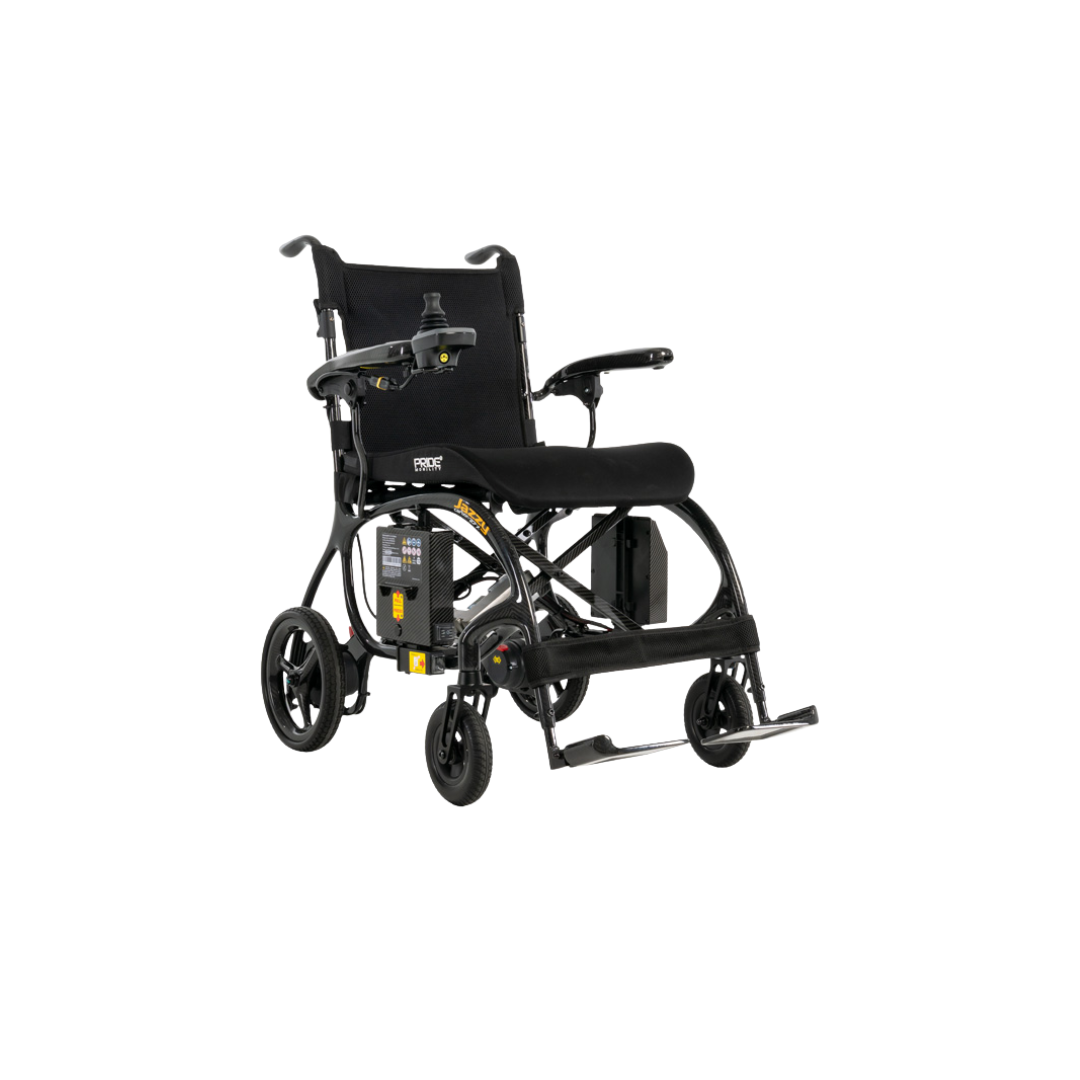

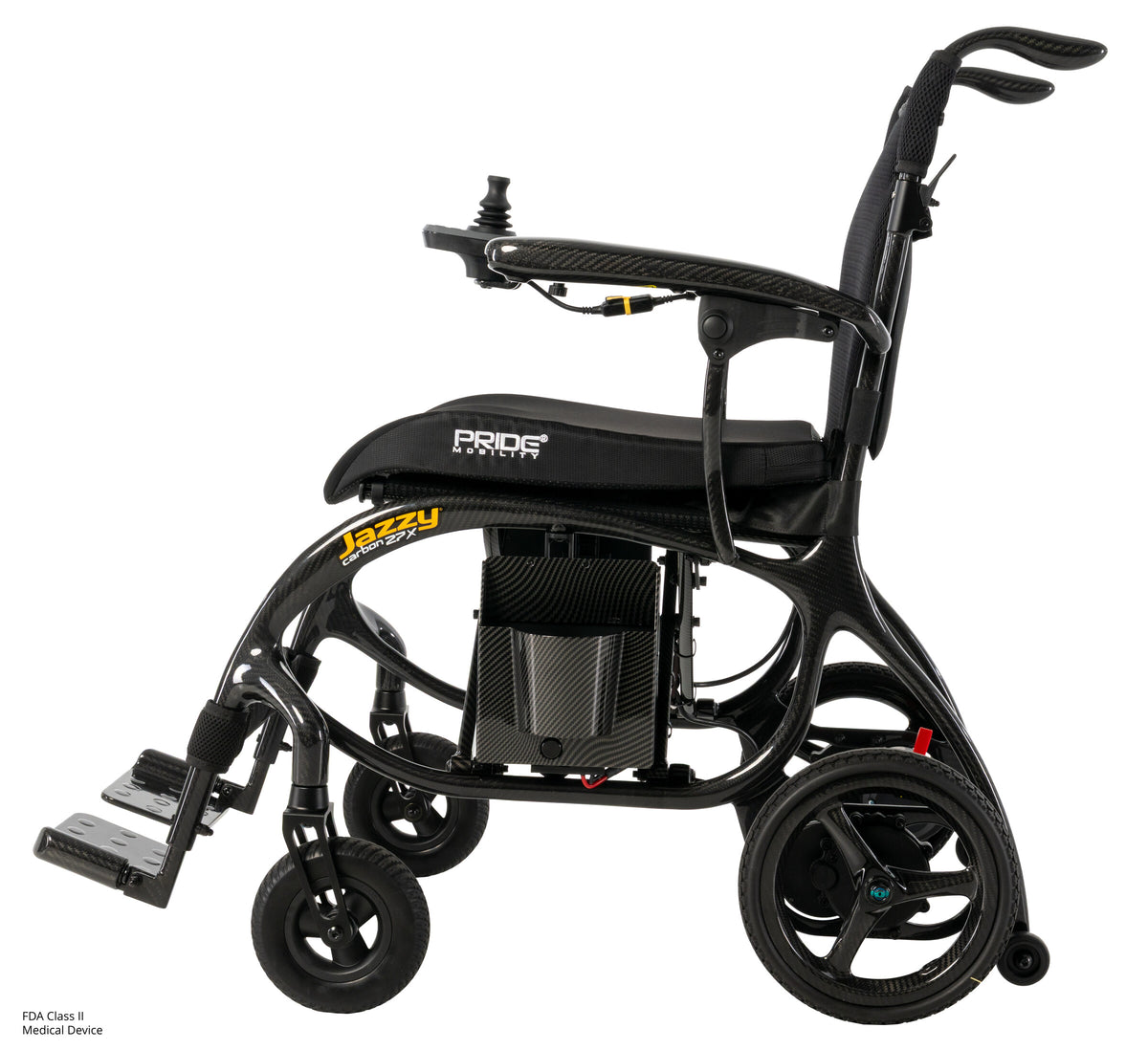

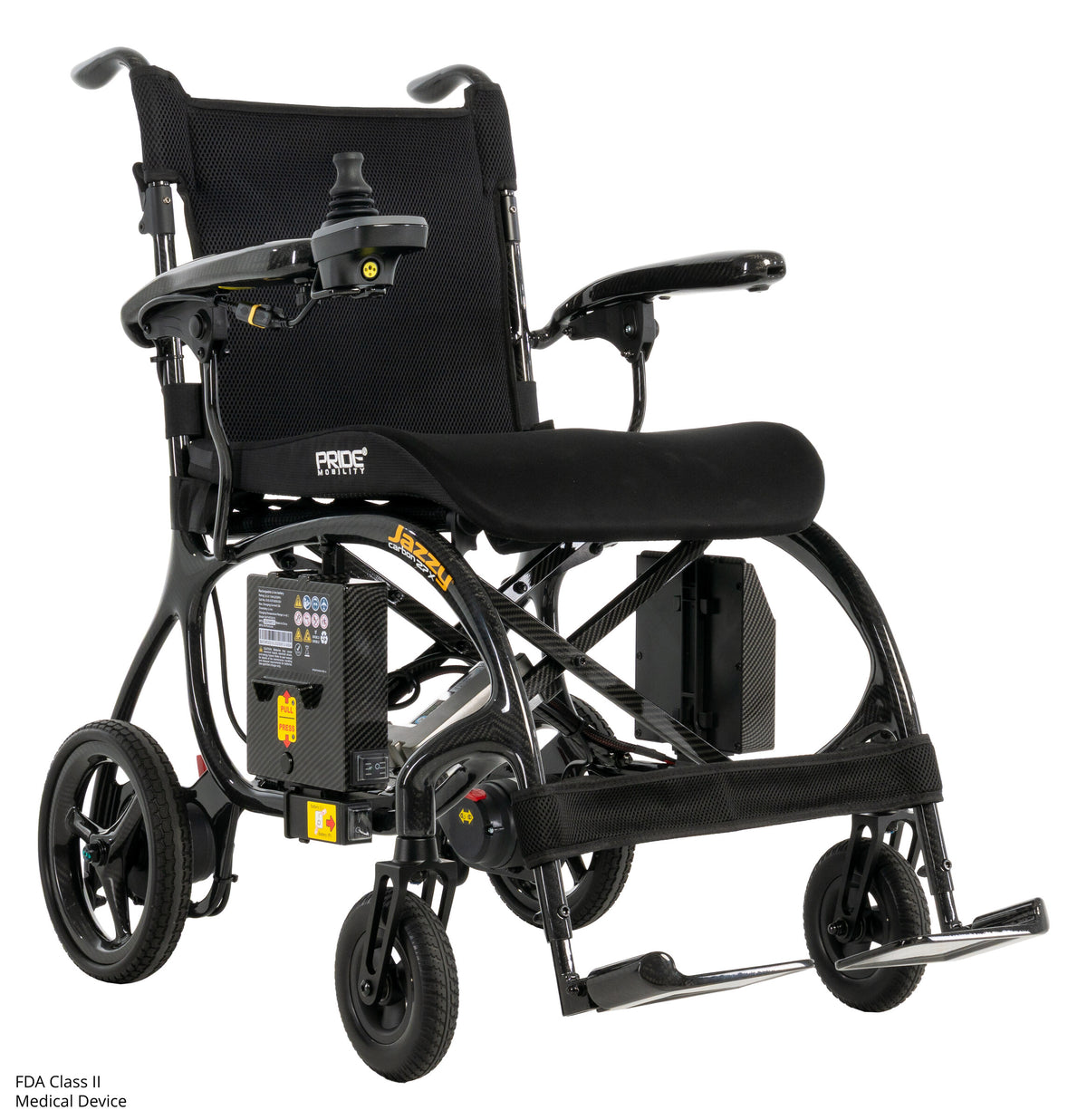

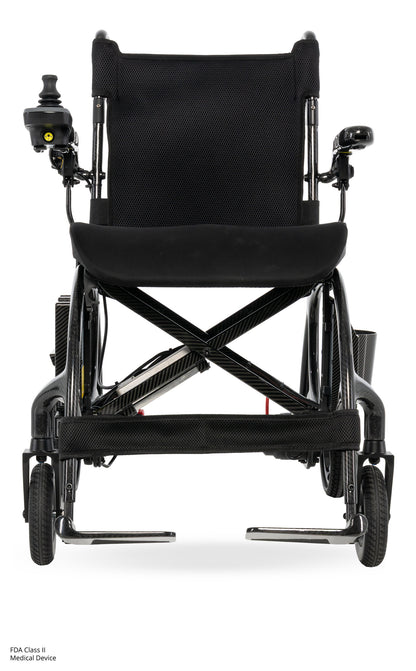

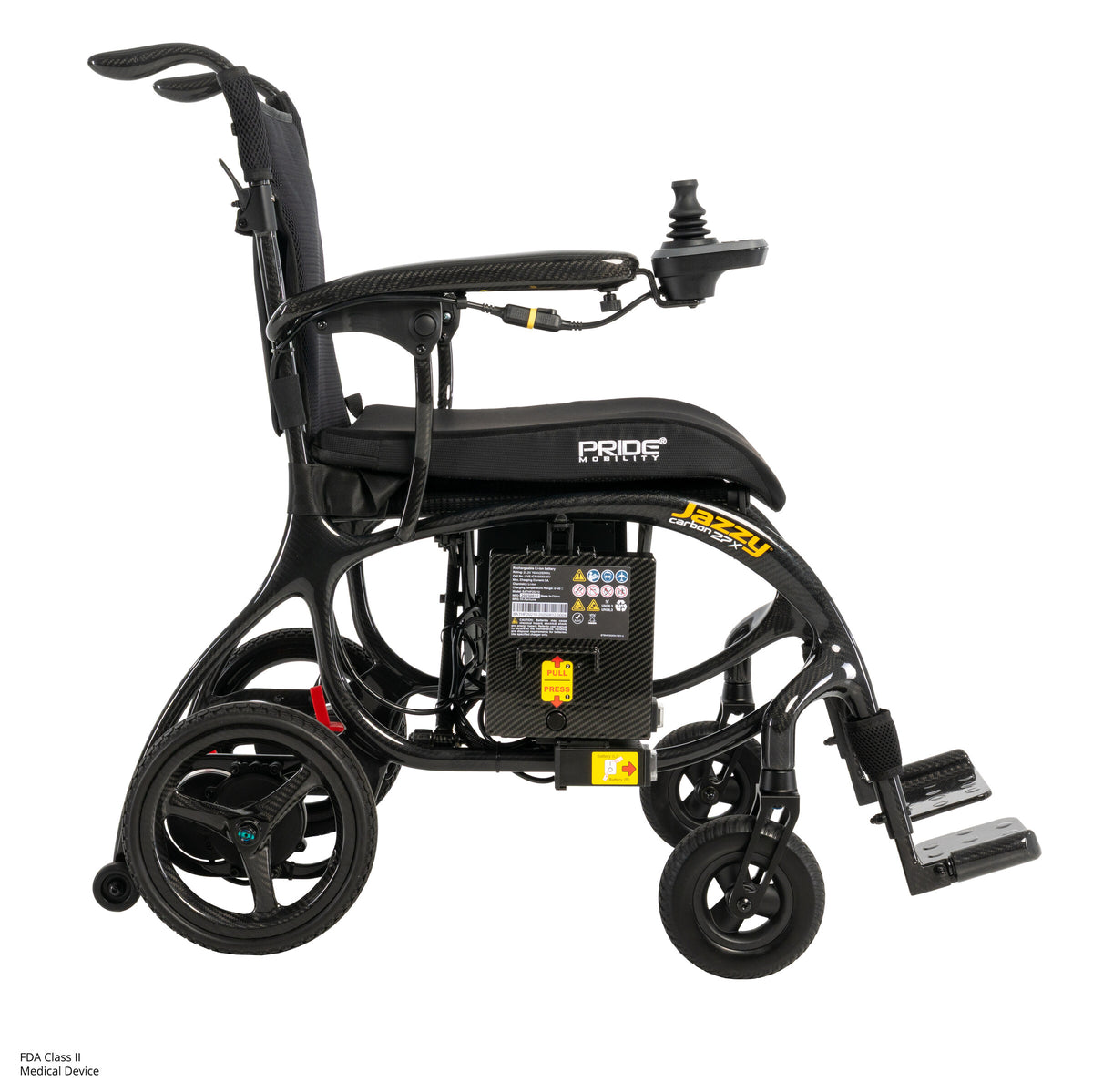

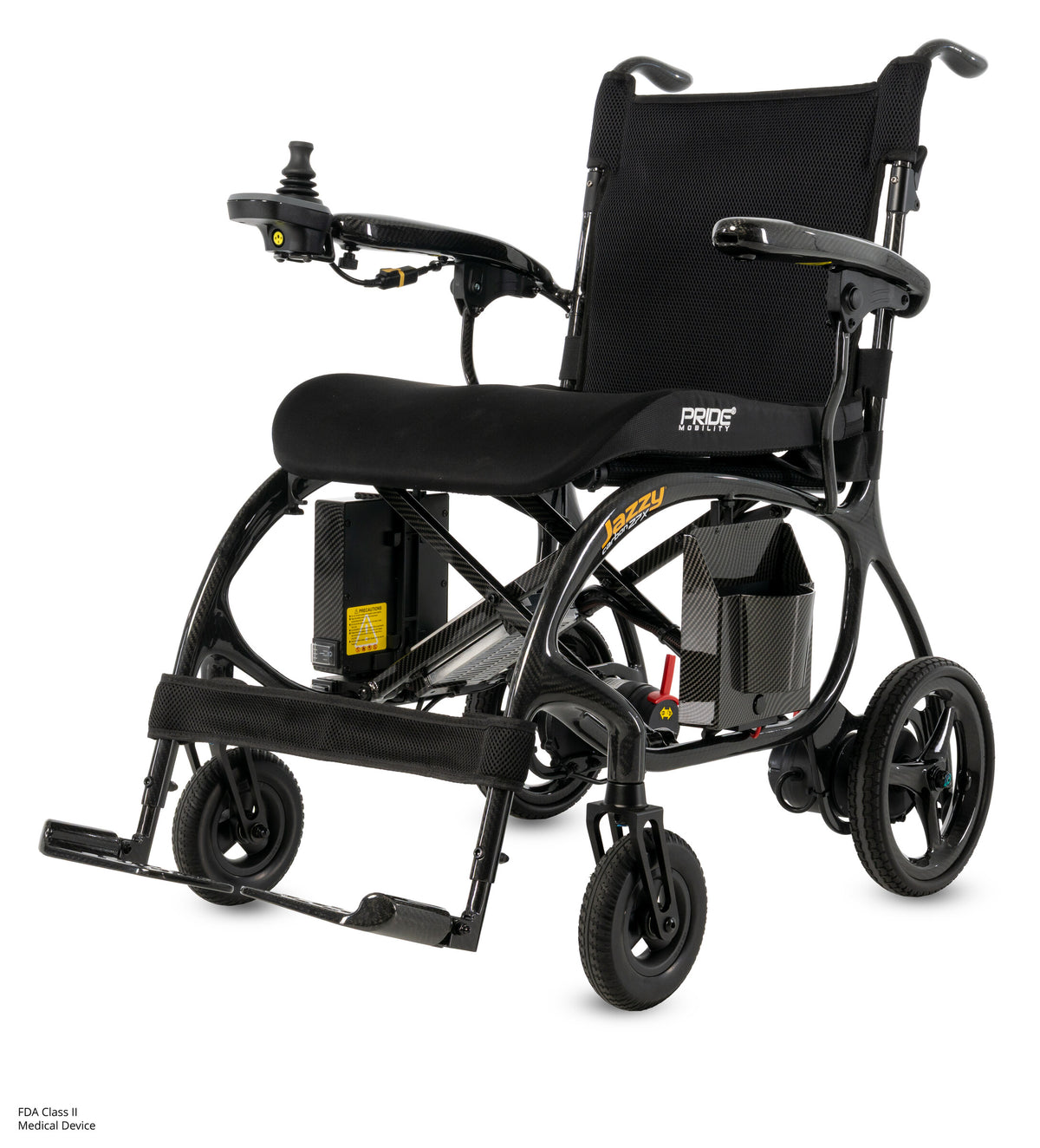

Pride Jazzy Carbon 27X Portable Folding Power Chair combines a lightweight design with a compact folding profile, responsive electric performance, and easy maneuverability. Weighing just 27.5 lbs. without batteries, the Jazzy Carbon 27X is designed for convenient transportation and everyday mobility.

With a 275 lb. weight capacity, up to 3.7 MPH maximum speed, and up to 8 miles of range per charge, the Jazzy Carbon 27X provides practical mobility in a lightweight package. Its 35.4-inch turning radius and 3-inch ground clearance make it well suited for navigating a variety of everyday environments.

The Jazzy Carbon 27X features 7-inch front wheels and 10-inch rear wheels, along with regenerative and electromechanical braking. The standard 18" × 18" seat includes a padded seat back, sling seat, and removable cushion for added comfort.

Key Features

• Lightweight portable folding power chair
• 275 lbs. weight capacity
• Up to 3.7 MPH maximum speed
• Up to 8 miles per charge
• 27.5 lbs. product weight without batteries

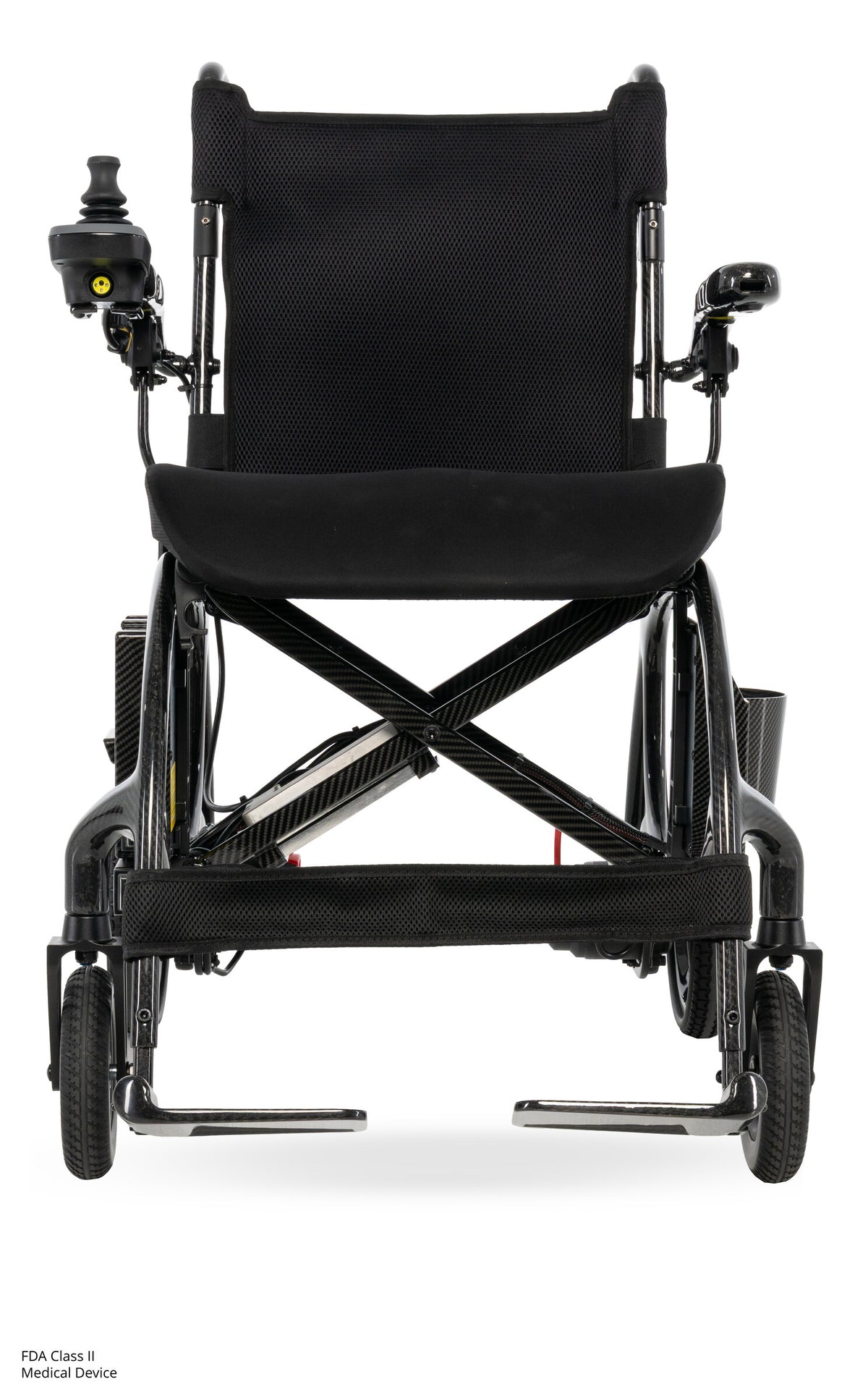

• Compact folding design
• 35.4-inch turning radius
• 3-inch ground clearance
• 24V 150W motor
• Regenerative and electromechanical braking system
• 24V 10Ah battery
• 3.5 Amp battery charger
• 7-inch front wheels
• 10-inch rear wheels
• 18" × 18" standard seating
• Padded seat back with sling seat and removable cushion

Lightweight & Portable Design

The Jazzy Carbon 27X is designed for riders looking for a lightweight power chair that is easy to transport. At just 27.5 lbs. without batteries, it provides convenient portability while supporting up to 275 lbs.

Weight Capacity: 275 lbs.
Product Weight Without Batteries: 27.5 lbs.
Folded Dimensions: 34" L × 12" W × 30" H
Overall Length: 41"
Overall Width: 23"

Performance & Range

The Jazzy Carbon 27X is powered by a 24V 150W motor and reaches speeds of up to 3.7 MPH. Its 24V 10Ah battery provides up to 8 miles per charge, with actual range varying based on rider weight, terrain, battery condition, tire condition, and other operating factors.

Motor: 24V 150W
Maximum Speed: Up to 3.7 MPH
Range: Up to 8 miles per charge
Battery: 24V 10Ah

Comfortable Seating

The Jazzy Carbon 27X features an 18" × 18" standard seat with a padded seat back and sling seat. A removable cushion provides additional flexibility and comfort during everyday use.

• Seat Dimensions: 18" × 18"
• Padded seat back
• Sling seat
• Removable cushion

Maneuverability & Ground Clearance

With a 35.4-inch turning radius and 3 inches of ground clearance, the Jazzy Carbon 27X is designed to provide practical maneuverability for everyday mobility. Its 7-inch front wheels and 10-inch rear wheels provide a stable wheel configuration.

Turning Radius: 35.4"
Ground Clearance: 3"
Front Wheels: 7"
Rear Wheels: 10"

Battery & Charging

The Jazzy Carbon 27X uses a 24V 10Ah battery and includes a 3.5 Amp charger. The battery weighs approximately 3.5 lbs.

• Battery Type: 24V 10Ah
• Battery Capacity: 10Ah
• Battery Weight: 3.5 lbs.
• Charger: 3.5 Amp

Travel Note: Transport of the Jazzy Carbon 27X and its lithium-ion battery on commercial aircraft is subject to federal regulations and airline policies. Check with your airline before traveling.

Braking System

The Jazzy Carbon 27X uses a regenerative and electromechanical braking system designed to provide controlled braking during operation.

Specifications

• Model: Jazzy Carbon 27X
• Weight Capacity: 275 lbs.
• Maximum Speed: Up to 3.7 MPH
• Range: Up to 8 miles per charge
• Product Weight Without Batteries: 27.5 lbs.
• Overall Length: 41"
• Overall Width: 23"
• Ground Clearance: 3"
• Turning Radius: 35.4"
• Suspension: N/A
• Front Wheels: 7"
• Rear Wheels: 10"
• Folded Dimensions: 34" L × 12" W × 30" H
• Motor: 24V 150W
• Braking: Regenerative and Electromechanical
• Battery: 24V 10Ah
• Battery Weight: 3.5 lbs.
• Charger: 3.5 Amp
• Standard Seat: 18" × 18" with padded seat back, sling seat, and removable cushion

Warranty

• Frame: 5-year limited warranty
• Drivetrain: 13-month limited warranty
• Electronics: 13-month limited warranty
• Battery: 13-month warranty

Medical Device Information

Pride® FDA Class II Medical Devices are designed to aid individuals with mobility impairments.

HCPCS Code: K0899 Power Mobility Device, not coded by DME PDAC. DME providers are responsible for determining appropriate billing codes when submitting for insurance reimbursement. HCPCS codes provided should not be considered legal advice and do not guarantee reimbursement. Payer coding, coverage, and bundling guidelines may apply.

Note: Specifications may vary due to manufacturing tolerances, continual product improvement, user weight, terrain, battery condition, tire pressure, and other operating conditions. Speed and range may vary by individual use. Overall measurements may also vary based on seating and accessory selections.
