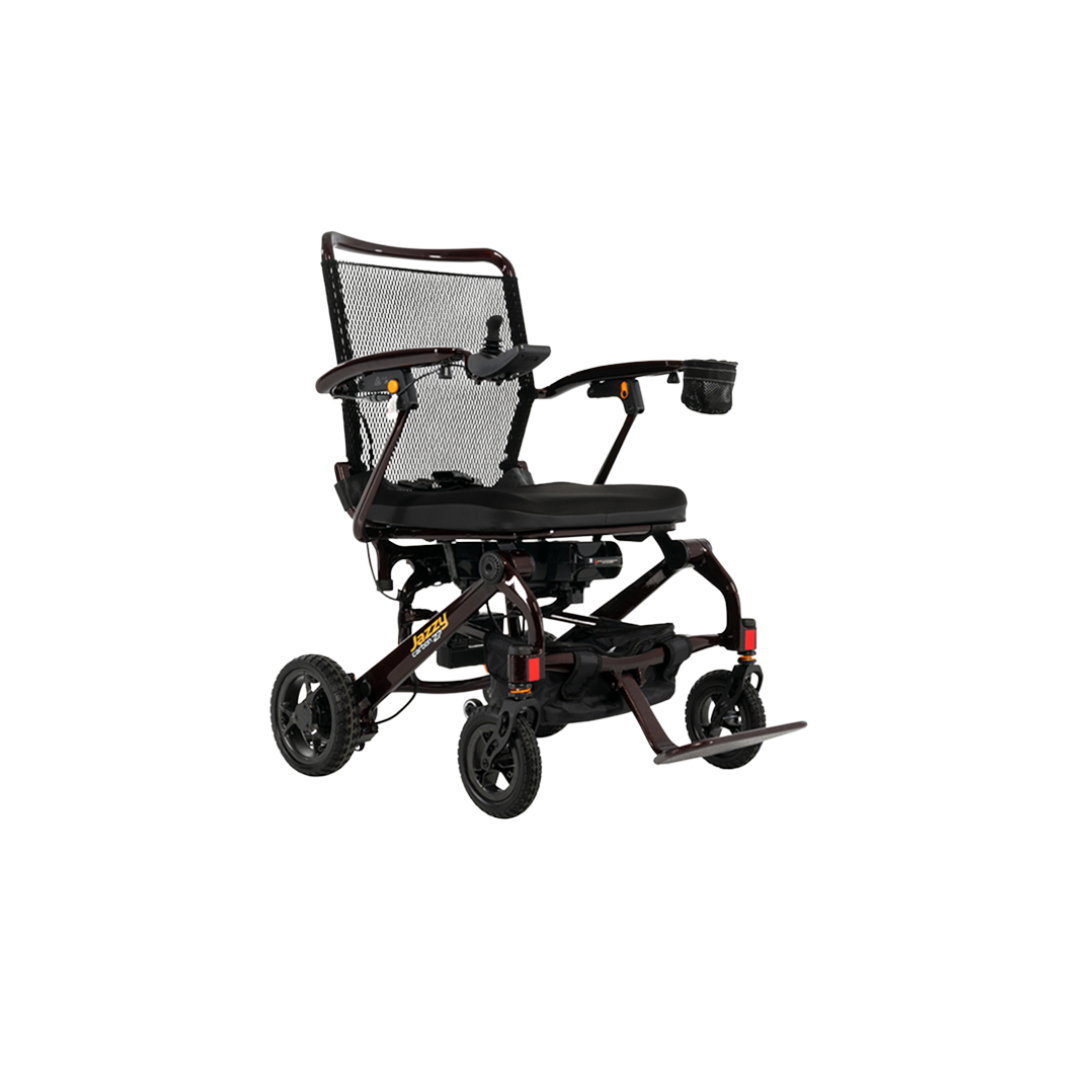

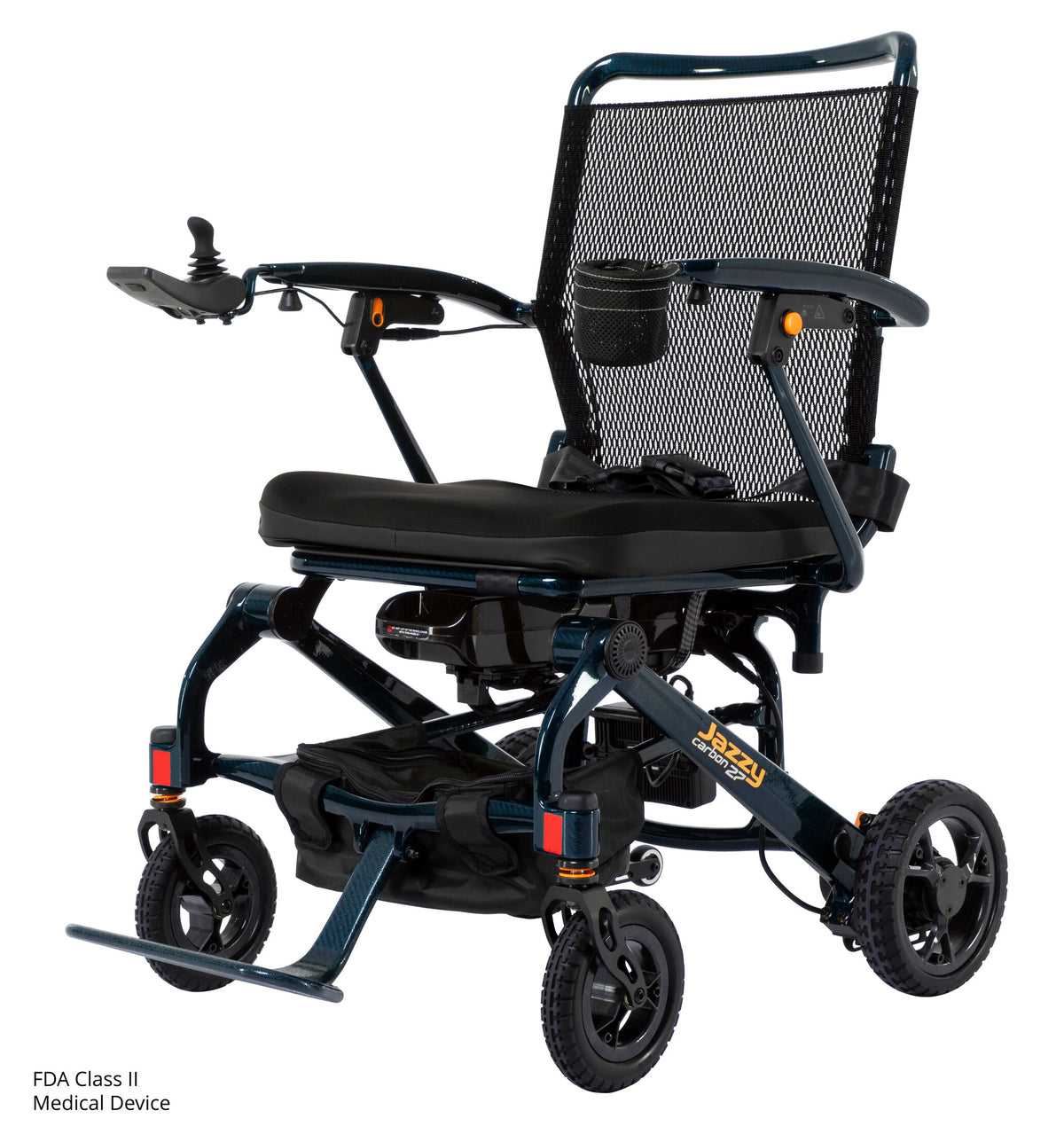

Pride Jazzy Carbon 27 Portable Folding Power Chair combines lightweight portability with full front suspension, a compact folding design, and dependable electric performance. Weighing just 27.8 lbs. without batteries, the Jazzy Carbon 27 is designed to make transportation and storage easier without sacrificing comfort and maneuverability.

With a 300 lb. weight capacity, up to 3.7 MPH top speed, and up to 9.3 miles of range per charge, the Jazzy Carbon 27 provides convenient mobility for everyday use. Its compact design features a 33.4-inch turning radius and folds down to approximately 27.5" L × 23.4" W × 13.38" H for easier storage and transport.

The Jazzy Carbon 27 features full front suspension to help provide a smoother ride, while regenerative and electromechanical braking provides controlled stopping. The standard seating includes a mesh seat back and solid seat pan with a removable cushion for added comfort.

Key Features

• Lightweight portable folding power chair
• 27.8 lbs. without batteries
• 300 lbs. weight capacity
• Up to 3.7 MPH maximum speed
• Up to 9.3 miles per charge
• Full front suspension
• 33.4-inch turning radius
• Compact folding design
• Folded dimensions of 27.5" L × 23.4" W × 13.38" H
• 24V 250W motor
• Regenerative and electromechanical braking system
• 12Ah lithium battery
• 2 Amp battery charger
• Mesh seat back with solid seat pan and removable cushion
• 6.89-inch front wheels
• 8.27-inch rear wheels

Lightweight & Portable Design

The Jazzy Carbon 27 is designed with portability in mind. The power chair weighs only 27.8 lbs. without batteries and folds into a compact package for easier storage and transportation.

Product Weight Without Batteries: 27.8 lbs.
Folded Dimensions: 27.5" L × 23.4" W × 13.38" H
Overall Length: 35.04"
Overall Width: 23.43"

Performance & Range

The Jazzy Carbon 27 is powered by a 24V 250W drivetrain/motor and can reach speeds of up to 3.7 MPH. Its 12Ah lithium battery provides up to 9.3 miles per charge, depending on rider weight, terrain, battery condition, tire condition, and other operating conditions.

Motor: 24V 250W
Maximum Speed: Up to 3.7 MPH
Range: Up to 9.3 miles per charge
Battery: 12Ah Lithium Battery

Comfort & Suspension

Full front suspension helps absorb bumps and vibrations for a more comfortable ride. The standard seat features a 17" × 17" seating area with a mesh seat back, solid seat pan, and removable cushion.

• Full front suspension
• 17" × 17" standard seating
• Mesh seat back
• Solid seat pan
• Removable seat cushion

Maneuverability

The Jazzy Carbon 27 is designed for easy maneuverability in compact spaces. Its 33.4-inch turning radius, 6.89-inch front wheels, and 8.27-inch rear wheels provide a compact footprint for everyday mobility.

Turning Radius: 33.4"
Ground Clearance: 1" at motor
Front Wheels: 6.89"
Rear Wheels: 8.27"

Battery & Charging

The Jazzy Carbon 27 uses a 12Ah lithium battery box and includes a 2 Amp charger. The battery weighs approximately 4.6 lbs.

• Battery Type: Lithium battery box
• Battery Capacity: 12Ah
• Battery Weight: 4.6 lbs.
• Charger: 2 Amp

Travel Note: Transport of the Jazzy Carbon 27 and its lithium-ion battery on commercial aircraft is subject to federal regulations and airline policies. Check with your airline before traveling.

Braking System

The Jazzy Carbon 27 uses a regenerative and electromechanical braking system designed to provide controlled braking during operation.

Specifications

• Model: Jazzy Carbon 27
• Weight Capacity: 300 lbs.
• Maximum Speed: Up to 3.7 MPH
• Range: Up to 9.3 miles per charge
• Product Weight Without Batteries: 27.8 lbs.
• Overall Length: 35.04"
• Overall Width: 23.43"
• Ground Clearance: 1" at motor
• Turning Radius: 33.4"
• Suspension: Full front suspension
• Front Wheels: 6.89"
• Rear Wheels: 8.27"
• Folded Dimensions: 27.5" L × 23.4" W × 13.38" H
• Motor: 24V 250W
• Braking: Regenerative and electromechanical
• Battery: 12Ah Lithium Battery
• Battery Weight: 4.6 lbs.
• Charger: 2 Amp
• Standard Seat: 17" × 17" with mesh seat back, solid seat pan, and removable cushion

Warranty

• Frame: 5-year warranty
• Drivetrain: 1-year limited warranty
• Electronics: 1-year limited warranty
• Battery: 1-year limited warranty

Medical Device Information

Pride® FDA Class II Medical Devices are designed to aid individuals with mobility impairments.

HCPCS Code: K0899 Power Mobility Device, not coded by DME PDAC. DME providers are responsible for determining appropriate billing codes when submitting for insurance reimbursement. HCPCS codes provided should not be considered legal advice and do not guarantee reimbursement. Payer coding, coverage, and bundling guidelines may apply.

Note: Specifications may vary due to manufacturing tolerances, continual product improvement, user weight, terrain, battery condition, tire pressure, and other operating conditions. Speed and range may vary by individual use. Overall measurements may also vary based on seating and accessory selections.
